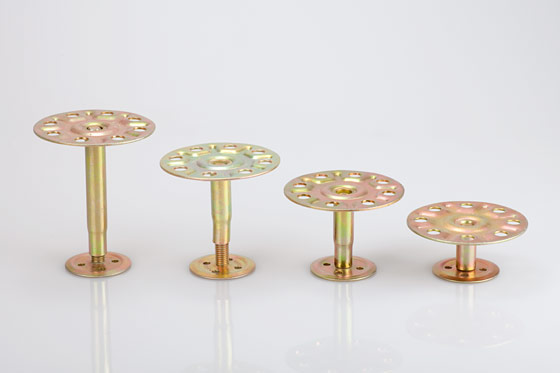

PEDESTAL SUPPORT

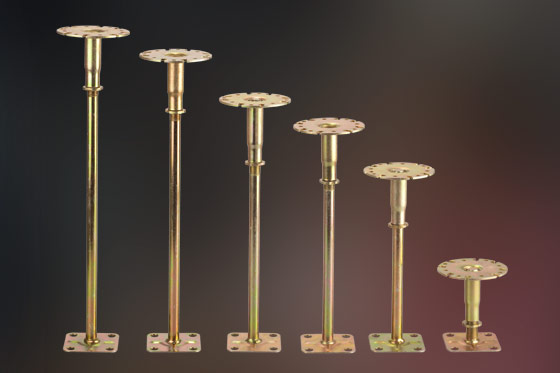

Pedestal M16

Operational area: Raised access floor
Standard range of adjustmen: From support height 26 mm, to support height 490 mm, other height by sepcial order.
Material: Steel
Refinement: All parts available in blue or yellow galvanised
Dimensions of the support tube: 21 mm external, 17 mm internal
Taper ratio of the support tube: 17.8 mm external

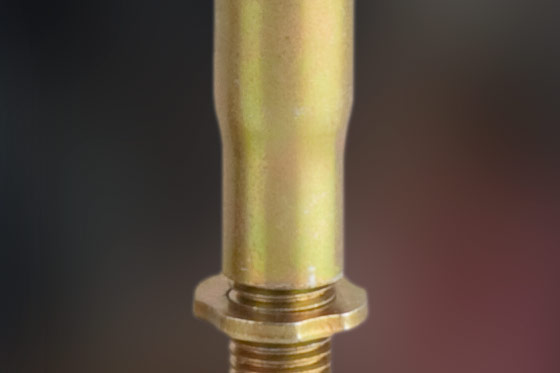

Thread size: M16

Bottom part

Dimension of the bottom plate: 90mm square, strength 2 mm (circle are available)
Thread bolt: M16 with nut

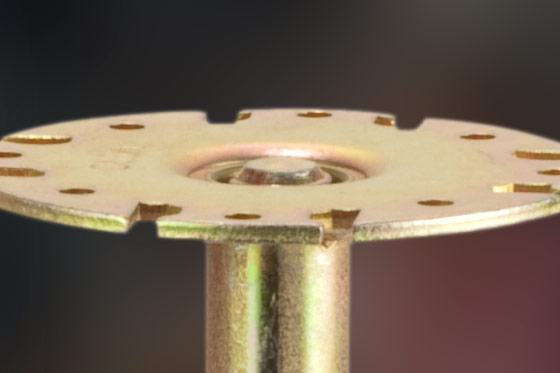

Head part

Dimension of the head plate: 90 mm circle, strength 3 mm
Material adding of the head part: With tube centrically round welded

Accessories

Plastic gasket: Conductive gasket on the head plate available
Stringer: U-type available, increases the horizontal stability

With a pedestal test height of 480 mm

Load level: 5
Nominal point load: 5 kN
Vertical centrical nominal test load: 10 kN
Failture load: >30 kN

Article	Pedestal-height (in mm)	Base part length (in mm)	Head part length (in mm)
M16-PS1	26-35	23	19
M16-PS2	32-48	29	26
M16-PS3	45-65	41	31
M16-PS4	61-90	55	47
M16-PS5	83-130	73	69
M16-PS6	120-200	106	106
M16-PS7	170-290	146	156
M16-PS8	250-390	246	156
M16-PS9	350-490	346	156
Other sizes on request also available; All parts available in blue or yellow galvanised, 6-8 micro metres; All pedestal supports are pre-assembled.

Article

Pedestal-height
(in mm)

Base part length
(in mm)

Head part length
(in mm)

M16-PS1

26-35

M16-PS2

32-48

M16-PS3

45-65

M16-PS4

61-90

M16-PS5

83-130

M16-PS6

120-200

106

M16-PS7

170-290

146

156

M16-PS8

250-390

246

156

M16-PS9

350-490

346

156

Other sizes on request also available; All parts available in blue or yellow galvanised, 6-8 micro metres; All pedestal supports are pre-assembled.

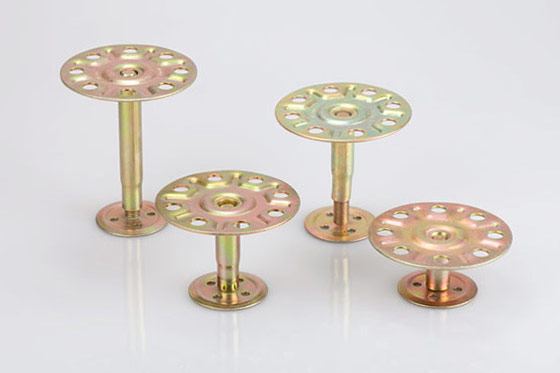

PEDESTAL SUPPORT

Pedestal M12

Operational area: Raised access floor
Standard range of adjustmen: From support height 35 mm, to support height 210 mm, other height by sepcial order.
Material: Steel
Refinement: All parts available in blue or yellow galvanised
Dimensions of the support tube: 16 mm external, 12 mm internal
Taper ratio of the support tube: 14 mm external
Thread size: M12

Bottom part

Dimension of the bottom plate: 55mm circle, strength 2 mm (square available)
Thread bolt: M12

Head part

Dimension of the head plate: 90 mm circle, strength 2 mm
Material adding of the head part: With tube centrically round welded

With a pedestal test height of 480 mm

Load level: 5
Nominal point load: 5 kN
Vertical centrical nominal test load: 10 kN
Failture load: > 22.5 kN

Article	Pedestal-height (in mm)	Base part length (in mm)	Head part length (in mm)
M12-PS1	35-57	30	30
M12-PS2	50-72	40	40
M12-PS3	60-97	50	50
M12-PS4	70-130	70	70
M12-PS5	110-170	105	70
M12-PS6	150-210	115	70
Other sizes on request also available; All parts available in blue or yellow galvanised, 6-8 micro metres; All pedestal supports are pre-assembled.

Article

Pedestal-height
(in mm)

Base part length
(in mm)

Head part length
(in mm)

M12-PS1

35-57

M12-PS2

50-72

M12-PS3

60-97

M12-PS4

70-130

M12-PS5

110-170

105

M12-PS6

150-210

115

Other sizes on request also available; All parts available in blue or yellow galvanised, 6-8 micro metres; All pedestal supports are pre-assembled.
